SSM3K345R,LF

SSM3K345R,LF

Part NumberSSM3K345R,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CHANNEL 20V 4A SOT23F

DatasheetSSM3K345R

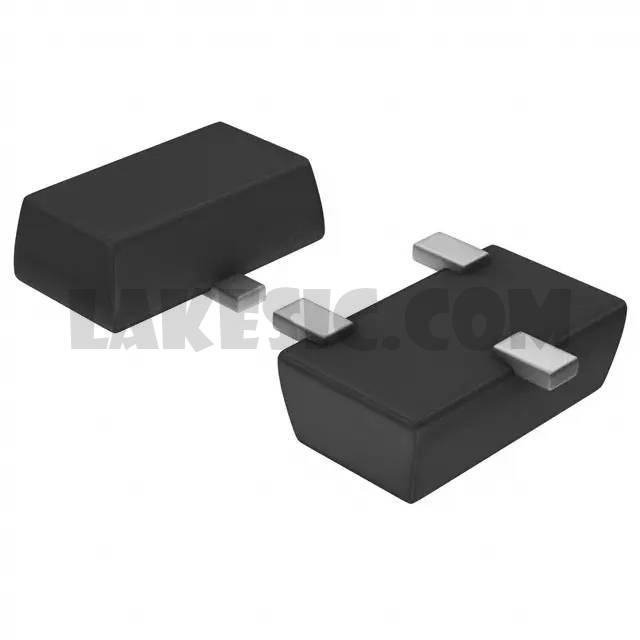

Package / CaseSOT-23-3 Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 4A (Ta) 1W (Ta) Surface Mount SOT-23F

To learn about the specification of SSM3K345R,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K345R,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K345R,LF.
We are offering SSM3K345R,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K345R,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3K345R
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVI
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	33mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	3.6nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	410pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23F
Package / Case	SOT-23-3 Flat Leads
