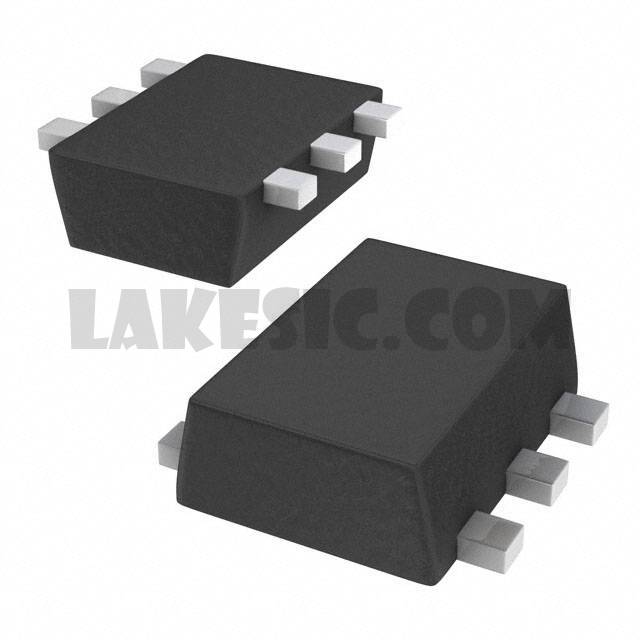

SSM6K403TU,LF

SSM6K403TU,LF

Part NumberSSM6K403TU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 20V 4.2A

DatasheetSSM6K403TU

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 4.2A (Ta) 500mW (Ta) Surface Mount UF6

To learn about the specification of SSM6K403TU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6K403TU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6K403TU,LF.
We are offering SSM6K403TU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6K403TU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6K403TU
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIII
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4V
Rds On (Max) @ Id, Vgs	28mOhm @ 3A, 4V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	16.8nC @ 4V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1050pF @ 10V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UF6
Package / Case	6-SMD, Flat Leads
