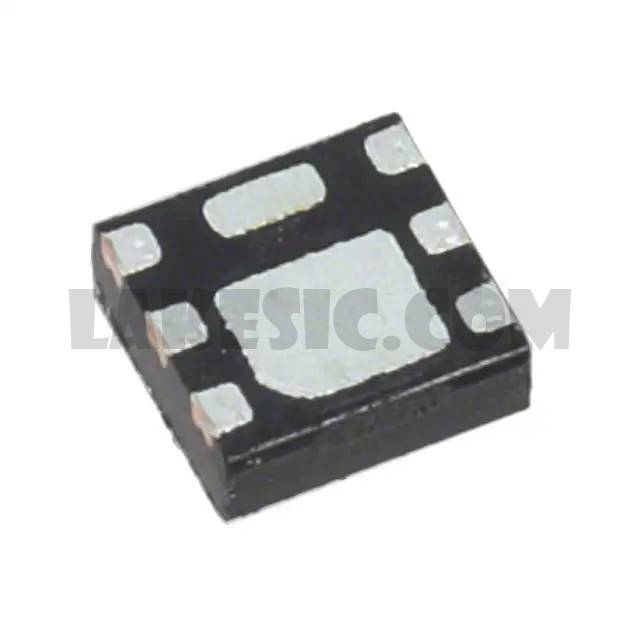

SSM6K513NU,LF

SSM6K513NU,LF

Part NumberSSM6K513NU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET NCH 30V 15A UDFNB

DatasheetSSM6K513NU

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 15A (Ta) 1.25W (Ta) Surface Mount 6-UDFNB (2x2)

To learn about the specification of SSM6K513NU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6K513NU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6K513NU,LF.
We are offering SSM6K513NU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6K513NU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6K513NU
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	7.5nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1130pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	150°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
