SSM6K781G,LF

SSM6K781G,LF

Part NumberSSM6K781G,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 12V 7A 6WCSP6C

DatasheetSSM6K781G

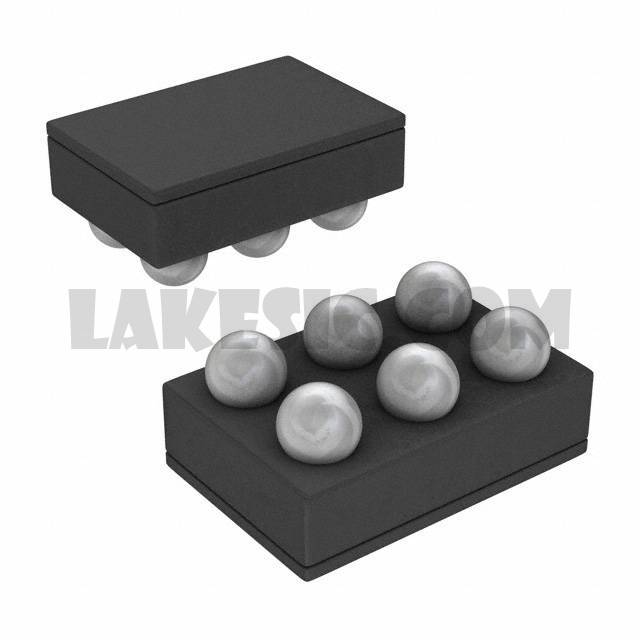

Package / Case6-UFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 7A (Ta) 1.6W (Ta) Surface Mount 6-WCSPC (1.5x1.0)

To learn about the specification of SSM6K781G,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6K781G,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6K781G,LF.
We are offering SSM6K781G,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6K781G,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6K781G
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVII-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	18mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.4nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	600pF @ 6V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WCSPC (1.5x1.0)
Package / Case	6-UFBGA, WLCSP
