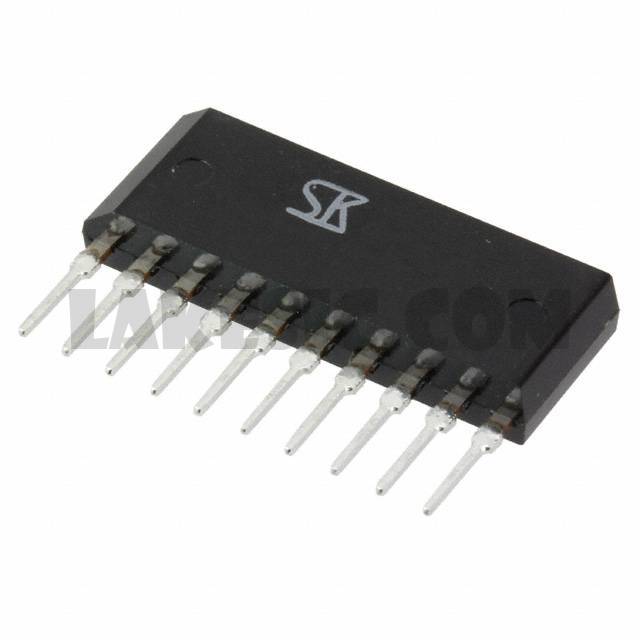

STA401A


STA401A

Part NumberSTA401A

Manufacturer

Description

Datasheet

Package / Case10-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

STA401A - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet
Standard Package3300
ManufacturerSanken
Series-
PackagingBulk
Part StatusActive
Transistor Type4 NPN Darlington (Quad)
Current - Collector (Ic) (Max)4A
Voltage - Collector Emitter Breakdown (Max)60V
Vce Saturation (Max) @ Ib, Ic2V @ 10mA, 3A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 3A, 4V
Power - Max4W
Frequency - Transition-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case10-SIP
Supplier Device Package10-SIP
