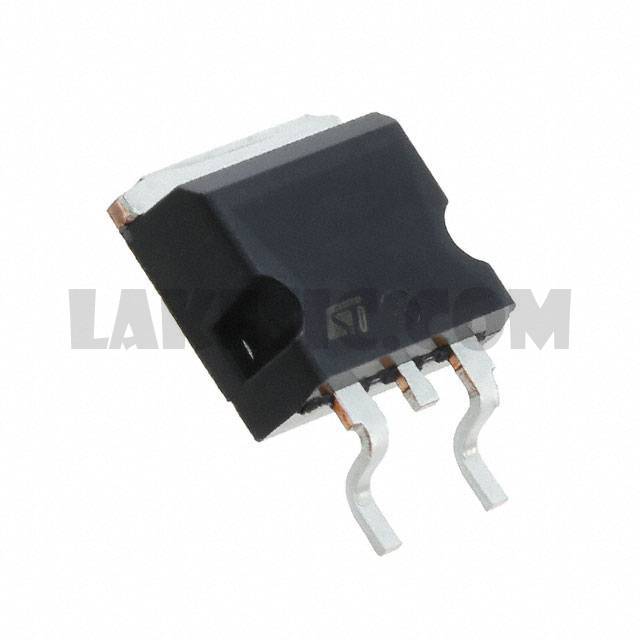

STB8N90K5

STB8N90K5

Part NumberSTB8N90K5

ManufacturerSTMicroelectronics

DescriptionN-CHANNEL 900 V, 0.60 OHM TYP.,

DatasheetSTB8N90K5

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 900V 8A (Tc) 130W (Tc) Surface Mount D2PAK

To learn about the specification of STB8N90K5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STB8N90K5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STB8N90K5.
We are offering STB8N90K5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STB8N90K5 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STB8N90K5
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™ K5
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	900V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	800mOhm @ 1.17A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Vgs (Max)	±30V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
