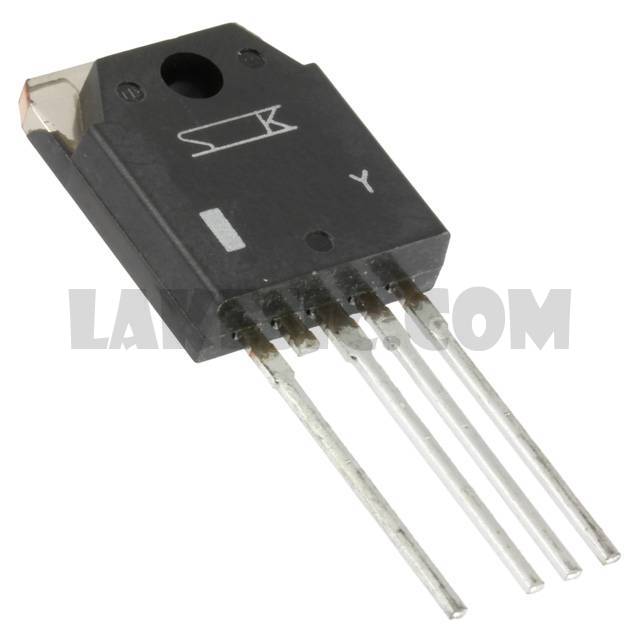

STD01P

STD01P

Part NumberSTD01P

ManufacturerSanken

DescriptionTRANS PNP DARL 150V 10A TO-3P-5

DatasheetSTD01N(P)

Package / CaseTO-3P-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 150V 10A 100W Through Hole TO-3P-5L

To learn about the specification of STD01P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STD01P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STD01P.
We are offering STD01P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STD01P - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	STD01N(P)
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	10A
Voltage - Collector Emitter Breakdown (Max)	150V
Vce Saturation (Max) @ Ib, Ic	2V @ 6mA, 6A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 6A, 4V
Power - Max	100W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-5
Supplier Device Package	TO-3P-5L
