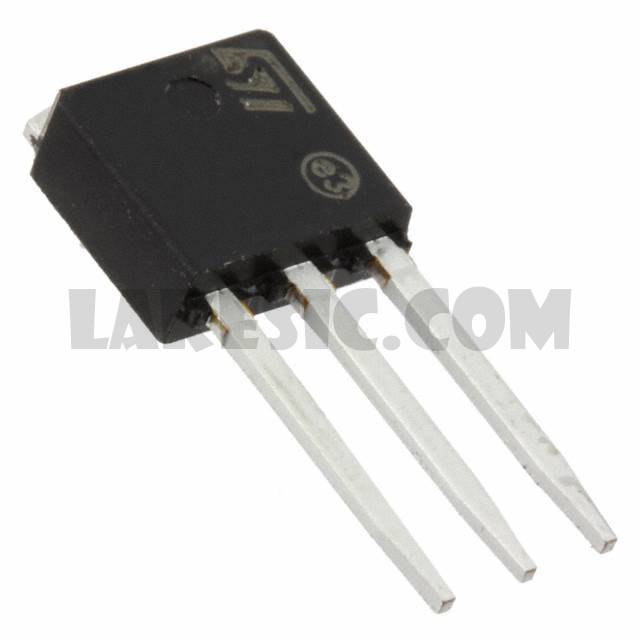

STD12NF06L-1

STD12NF06L-1

Part NumberSTD12NF06L-1

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 60V 12A IPAK

DatasheetSTD12NF06L(-1)

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 12A (Tc) 42.8W (Tc) Through Hole I-PAK

To learn about the specification of STD12NF06L-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STD12NF06L-1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STD12NF06L-1.
We are offering STD12NF06L-1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STD12NF06L-1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STD12NF06L(-1)
Standard Package	75
Manufacturer	STMicroelectronics
Series	STripFET™ II
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	100mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 5V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	350pF @ 25V
FET Feature	-
Power Dissipation (Max)	42.8W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
