STGB15M65DF2
STGB15M65DF2

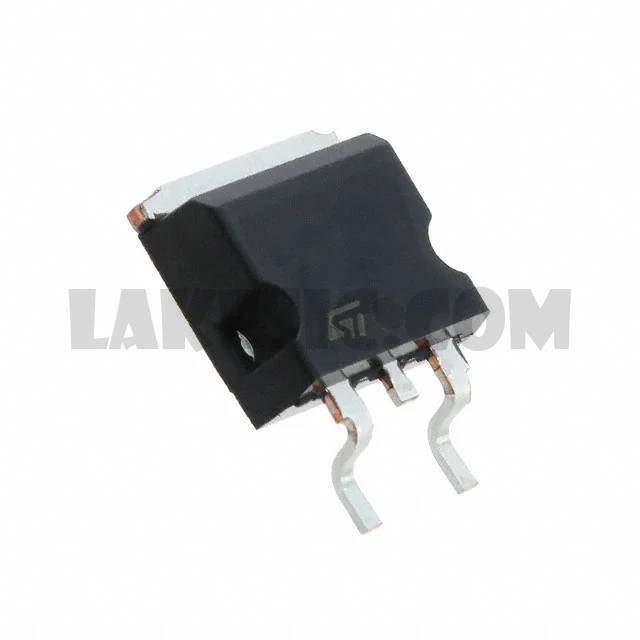

Part Number STGB15M65DF2
Description TRENCH GATE FIELD-STOP IGBT M SE
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench Field Stop 650V 30A 136W Surface Mount D2PAK
To learn about the specification of STGB15M65DF2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGB15M65DF2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGB15M65DF2.
We are offering STGB15M65DF2 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGB15M65DF2 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGB15M65DF2 Datasheet
Standard Package 1000
Manufacturer STMicroelectronics
Series -
Packaging Tape & Reel (TR)
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 650V
Current - Collector (Ic) (Max) 30A
Current - Collector Pulsed (Icm) 60A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 15A
Power - Max 136W
Switching Energy 90µJ (on), 450µJ (off)
Input Type Standard
Gate Charge 45nC
Td (on/off) @ 25°C 24ns/93ns
Test Condition 400V, 15A, 12Ohm, 15V
Reverse Recovery Time (trr) 142ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
