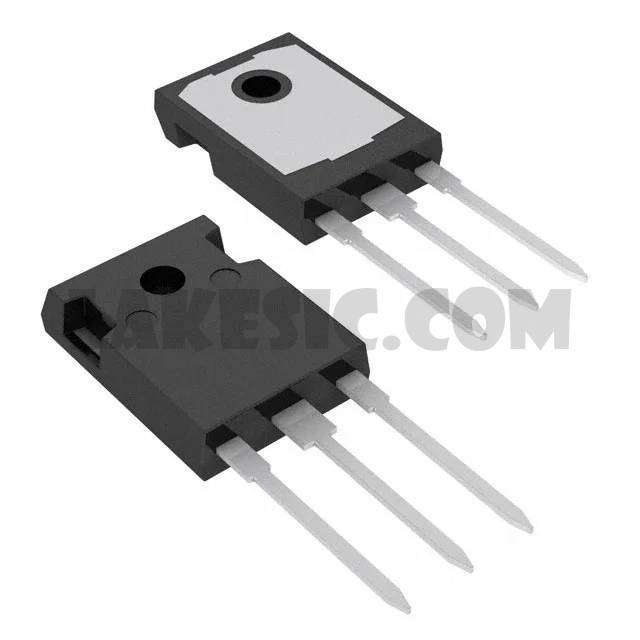

Part Number STGWA75M65DF2 Description TRENCH GATE FIELD-STOP IGBT M SE Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 650V 120A 468W Through Hole TO-247 Long Leads
To learn about the specification of STGWA75M65DF2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGWA75M65DF2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGWA75M65DF2.
We are offering STGWA75M65DF2 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGWA75M65DF2 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGW(A)75M65DF2 Datasheet Standard Package 600 Manufacturer STMicroelectronics Series M Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 120A Current - Collector Pulsed (Icm) 225A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 75A Power - Max 468W Switching Energy 690µJ (on), 2.54mJ (off) Input Type Standard Gate Charge 225nC Td (on/off) @ 25°C 47ns/125ns Test Condition 400V, 75A, 3.3Ohm, 15V Reverse Recovery Time (trr) 165ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247 Long Leads
