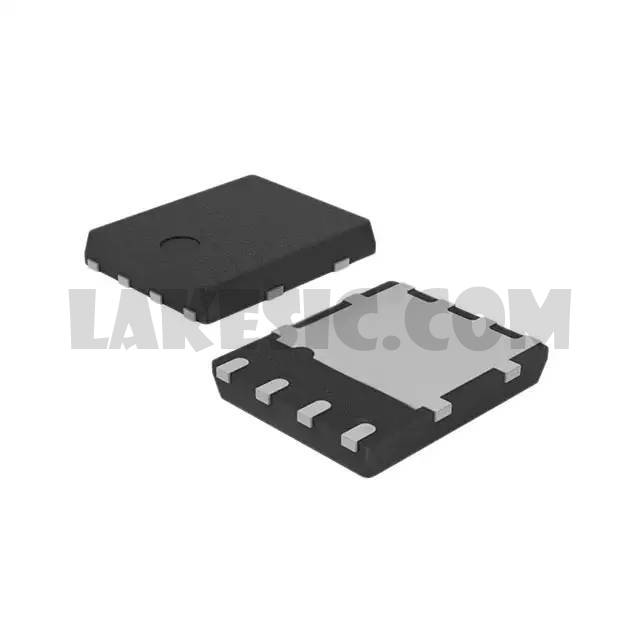

STL120N4LF6AG


STL120N4LF6AG

Part NumberSTL120N4LF6AG

Manufacturer

Description

Datasheet

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

STL120N4LF6AG - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerSTMicroelectronics
SeriesAutomotive, AEC-Q101, STripFET™
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs80nC @ 10V
Vgs (Max)40V
Input Capacitance (Ciss) (Max) @ Vds4260pF @ 25V
FET Feature-
Power Dissipation (Max)96W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
