STL130N8F7

STL130N8F7

Part NumberSTL130N8F7

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 80V POWERFLAT5X6

DatasheetSTL130N8F7

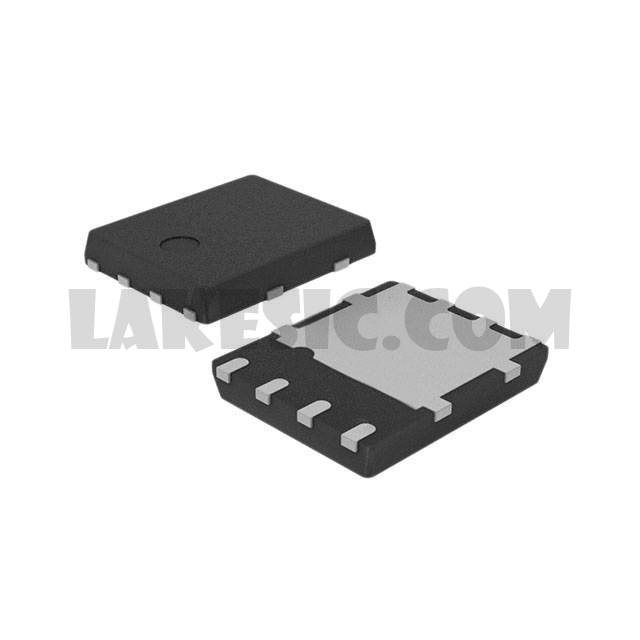

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 130A (Tc) 135W (Tc) Surface Mount PowerFlat™ (5x6)

To learn about the specification of STL130N8F7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL130N8F7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL130N8F7.
We are offering STL130N8F7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL130N8F7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL130N8F7
Standard Package	1
Manufacturer	STMicroelectronics
Series	DeepGATE™, STripFET™ VII
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	96nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6340pF @ 40V
FET Feature	-
Power Dissipation (Max)	135W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
