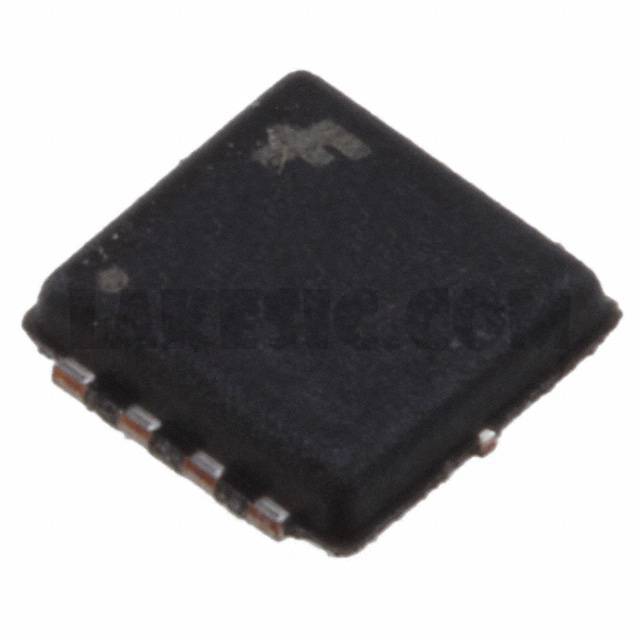

FDMC7672S

FDMC7672S

Part NumberFDMC7672S

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 8-MLP

DatasheetFDMC7672S

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 14.8A (Ta), 18A (Tc) 2.3W (Ta), 36W (Tc) Surface Mount 8-MLP (3.3x3.3)

To learn about the specification of FDMC7672S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC7672S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC7672S.
We are offering FDMC7672S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC7672S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC7672S
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®, SyncFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	14.8A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 14.8A, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	42nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2520pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 36W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
