STL18N60M2

STL18N60M2

Part NumberSTL18N60M2

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 600V 9A POWERFLAT

DatasheetSTL18N60M2

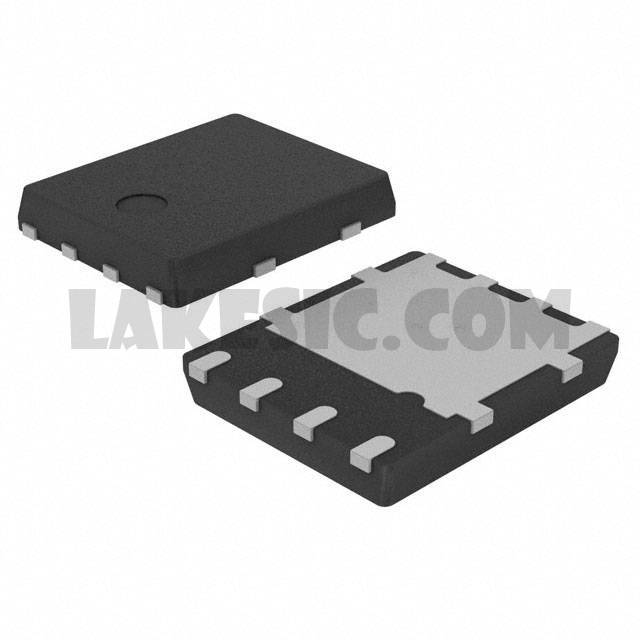

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 9A (Tc) 57W (Tc) Surface Mount PowerFlat™ (5x6) HV

To learn about the specification of STL18N60M2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL18N60M2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL18N60M2.
We are offering STL18N60M2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL18N60M2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL18N60M2
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™ II Plus
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	308mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21.5nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	791pF @ 100V
FET Feature	-
Power Dissipation (Max)	57W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6) HV
Package / Case	8-PowerVDFN
