BSR606NH6327XTSA1
BSR606NH6327XTSA1
Part Number BSR606NH6327XTSA1
Description MOSFET N-CH 60V 2.3A SC59

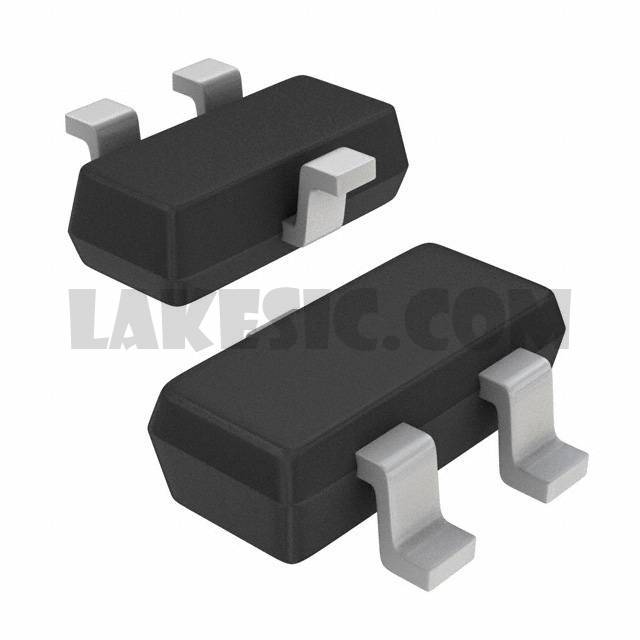

Package / Case TO-236-3, SC-59, SOT-23-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 60V 2.3A (Ta) 500mW (Ta) Surface Mount PG-SC-59
To learn about the specification of BSR606NH6327XTSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSR606NH6327XTSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSR606NH6327XTSA1.
We are offering BSR606NH6327XTSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSR606NH6327XTSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BSR606N
Standard Package 3000
Manufacturer Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Packaging Tape & Reel (TR)
Part Status Last Time Buy
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 60mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id 2.3V @ 15µA
Gate Charge (Qg) (Max) @ Vgs 5.6nC @ 5V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 657pF @ 25V
FET Feature -
Power Dissipation (Max) 500mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-SC-59
Package / Case TO-236-3, SC-59, SOT-23-3
