STL3N10F7

STL3N10F7

Part NumberSTL3N10F7

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 100V 4A POWERFLAT22

DatasheetSTL3N10F7

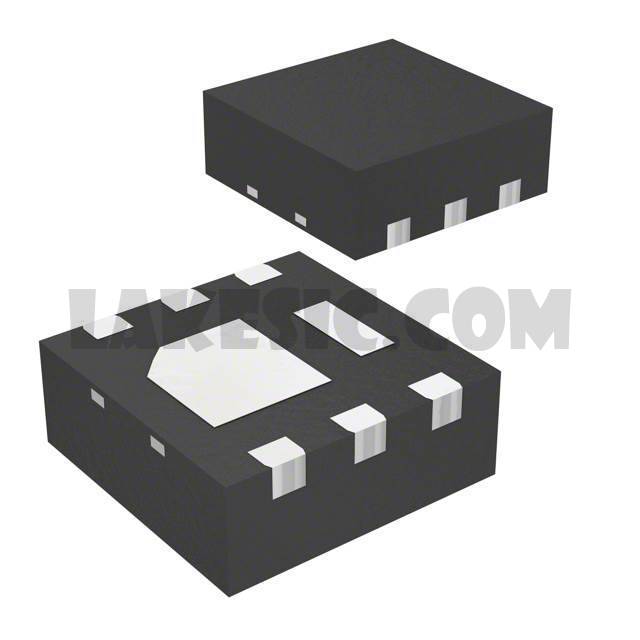

Package / Case6-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 4A (Tc) 2.4W (Tc) Surface Mount PowerFlat™ (2x2)

To learn about the specification of STL3N10F7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL3N10F7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL3N10F7.
We are offering STL3N10F7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL3N10F7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL3N10F7
Standard Package	3000
Manufacturer	STMicroelectronics
Series	DeepGATE™, STripFET™ VII
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	70mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	408pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (2x2)
Package / Case	6-PowerWDFN
