STQ2NK60ZR-AP

STQ2NK60ZR-AP

Part NumberSTQ2NK60ZR-AP

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 600V 0.4A TO-92

DatasheetSTF2NK60Z(x)

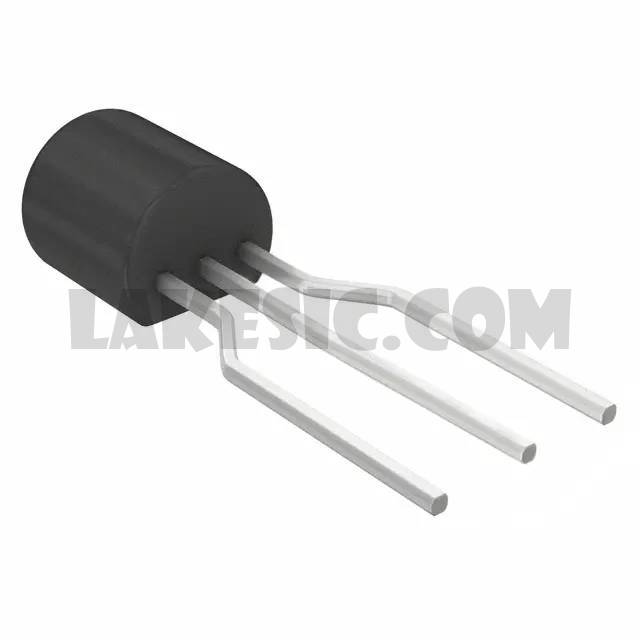

Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 400mA (Tc) 3W (Tc) Through Hole TO-92-3

To learn about the specification of STQ2NK60ZR-AP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STQ2NK60ZR-AP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STQ2NK60ZR-AP.
We are offering STQ2NK60ZR-AP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STQ2NK60ZR-AP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STF2NK60Z(x)
Standard Package	1
Manufacturer	STMicroelectronics
Series	SuperMESH™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	400mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8Ohm @ 700mA, 10V
Vgs(th) (Max) @ Id	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	170pF @ 25V
FET Feature	-
Power Dissipation (Max)	3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92-3
Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
