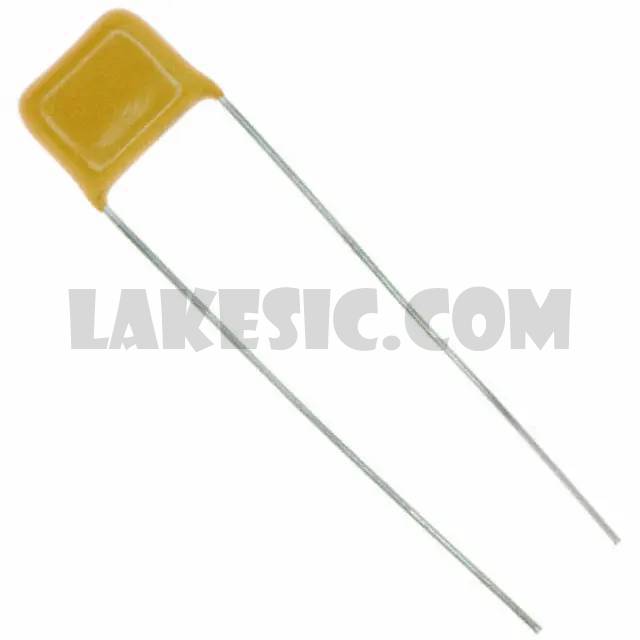

Categories	Capacitors / Ceramic Capacitors
Datasheet	SV Series
Standard Package	200
Manufacturer	AVX Corporation
Series	SV
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±10%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.571" L x 0.200" W (14.50mm x 5.08mm)
Height - Seated (Max)	0.500" (12.70mm)
Thickness (Max)	-
Lead Spacing	0.476" (12.10mm)
Lead Style	Straight

SV15KA101JAR	AVX Corporation, 100pF ±5% 5000V (5kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV01AC103KAR	AVX Corporation, 10000pF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View
SV15JA102JAR	AVX Corporation, 1000pF ±5% 4000V (4kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV03HC472MAR	AVX Corporation, 4700pF ±20% 3000V (3kV) Ceramic Capacitor X7R Radial, SV	View
SV14GA222JAR	AVX Corporation, 2200pF ±5% 2000V (2kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV09CC185KAR	AVX Corporation, 1.8µF ±10% 630V Ceramic Capacitor X7R Radial, SV	View
SV16AC105KAR	AVX Corporation, 1µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View
SV09AC474KAR	AVX Corporation, 0.47µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View
SV17HA802JAR	AVX Corporation, 8000pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV13AA222KAR	AVX Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV03GC472KAR	AVX Corporation, 4700pF ±10% 2000V (2kV) Ceramic Capacitor X7R Radial, SV	View
SV11CC225KAR	AVX Corporation, 2.2µF ±10% 630V Ceramic Capacitor X7R Radial, SV	View

SV07AC104KAR

Part NumberSV07AC104KAR
