Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	TBAT54(A,C,S)
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	140mA
Voltage - Forward (Vf) (Max) @ If	580mV @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1.5ns
Current - Reverse Leakage @ Vr	2µA @ 25V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount

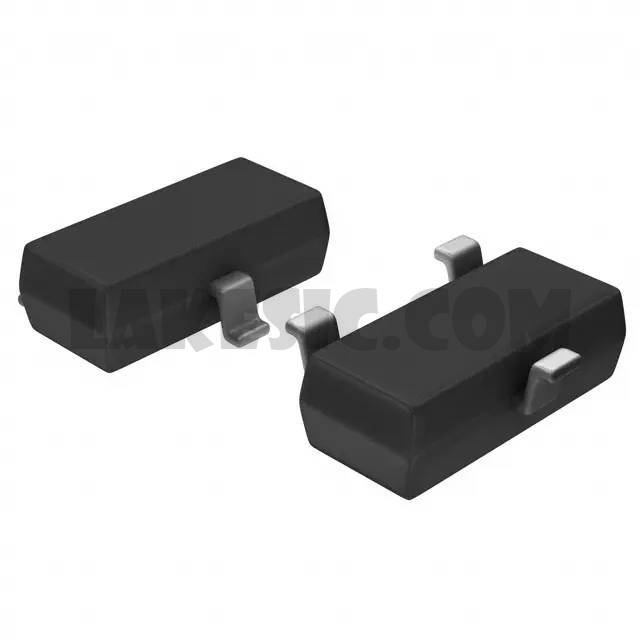

Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Operating Temperature - Junction	150°C (Max)

CUHS20S30,H3F	Toshiba Semiconductor and Storage, Diode Schottky 30V 2A Surface Mount US2H,	View
CMS05(TE12L,Q,M)	Toshiba Semiconductor and Storage, Diode Schottky 30V 5A Surface Mount M-FLAT (2.4x3.8),	View
CUHS20F40,H3F	Toshiba Semiconductor and Storage, Diode Schottky 40V 2A Surface Mount US2H,	View
MMBD355LT1G	ON Semiconductor, RF Diode Schottky - 1 Pair Common Anode 7V 225mW SOT-23-3 (TO-236),	View
MMBD770T1G	ON Semiconductor, RF Diode Schottky - Single 70V 200mA 120mW SC-70-3 (SOT323),	View
1N5711W-7-F	Diodes Incorporated, RF Diode Schottky - Single 70V 15mA 333mW SOD-123,	View
SMS7621-006LF	Skyworks Solutions Inc., RF Diode Schottky - 1 Pair Series Connection 2V 50mA 75mW SOT-23-3,	View
DSR01S30SL,L3F	Toshiba Semiconductor and Storage, Diode Schottky 30V 100mA Surface Mount SL2,	View
MMBD701LT1G	ON Semiconductor, RF Diode Schottky - Single 70V 200mW SOT-23-3 (TO-236),	View
CRS09(TE85L,Q,M)	Toshiba Semiconductor and Storage, Diode Schottky 30V 1.5A Surface Mount S-FLAT (1.6x3.5),	View
1SS394TE85LF	Toshiba Semiconductor and Storage, Diode Schottky 10V 100mA Surface Mount SC-59,	View
1SS404,H3F	Toshiba Semiconductor and Storage, Diode Schottky 20V 300mA Surface Mount USC,	View

TBAT54,LM

Part NumberTBAT54,LM
