TC2320TG-G

TC2320TG-G

Part NumberTC2320TG-G

ManufacturerMicrochip Technology

DescriptionMOSFET N/P-CH 200V 8SOIC

DatasheetTC2320

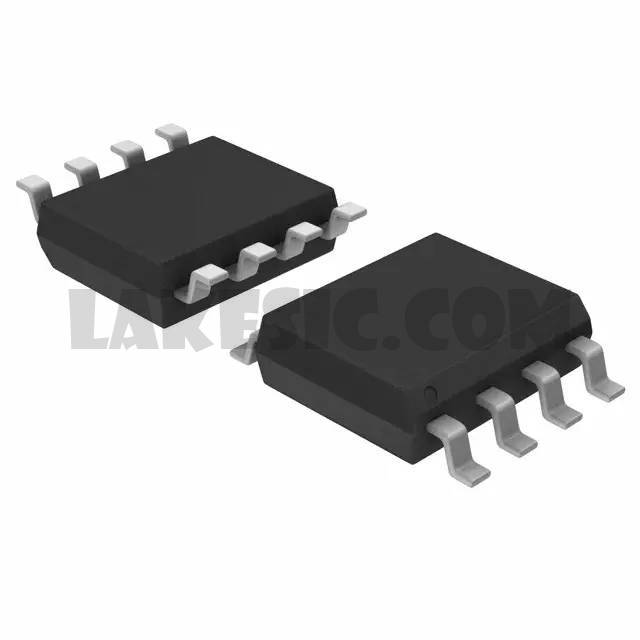

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 200V Surface Mount 8-SOIC

To learn about the specification of TC2320TG-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TC2320TG-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TC2320TG-G.
We are offering TC2320TG-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TC2320TG-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	TC2320
Standard Package	1
Manufacturer	Microchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	7Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	110pF @ 25V
Power - Max	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
