Home/Product Catalog/Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays/  TC8220K6-G

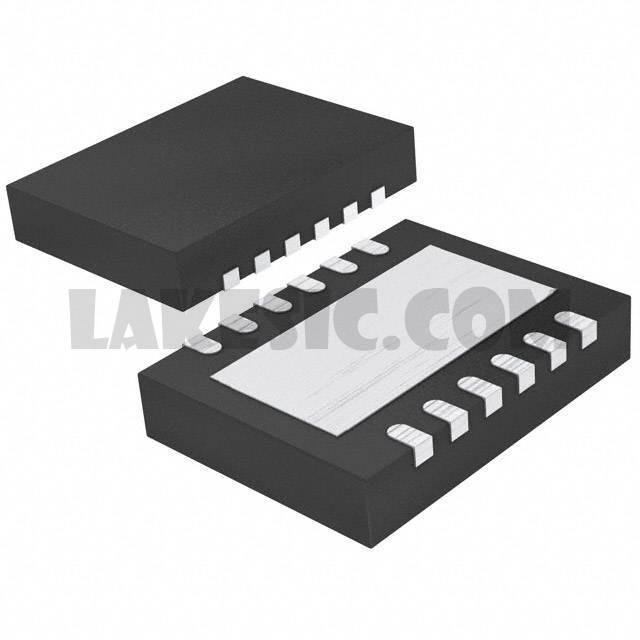

TC8220K6-G


TC8220K6-G

Part NumberTC8220K6-G

Manufacturer

Description

Datasheet

Package / Case12-VFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TC8220K6-G - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package1
ManufacturerMicrochip Technology
Series-
PackagingCut Tape (CT)
Part StatusActive
FET Type2 N and 2 P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)200V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs6Ohm @ 1A, 10V
Vgs(th) (Max) @ Id2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds56pF @ 25V
Power - Max-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-VFDFN Exposed Pad
Supplier Device Package12-DFN (4x4)

TC8220K6-G - Related Products

More >>
AO4616 Alpha & Omega Semiconductor Inc., Mosfet Array N and P-Channel 30V 8A, 7A 2W Surface Mount 8-SOIC, View
SQ3585EV-T1_GE3 Vishay Siliconix, Mosfet Array N and P-Channel 20V 3.57A (Tc), 2.5A (Tc) 1.67W Surface Mount 6-TSOP, Automotive, AEC-Q101, TrenchFET® View
DMC3021LSD-13 Diodes Incorporated, Mosfet Array N and P-Channel 30V 8.5A, 7A 2.5W Surface Mount 8-SO, View
DMC2038LVTQ-7 Diodes Incorporated, Mosfet Array N and P-Channel Complementary 20V 3.7A (Ta), 2.6A (Ta) 800mW (Ta) Surface Mount TSOT-26, Automotive, AEC-Q101 View
ZXMHC10A07N8TC Diodes Incorporated, Mosfet Array 2 N and 2 P-Channel (H-Bridge) 100V 800mA, 680mA 870mW Surface Mount 8-SOP, View
TSM2537CQ RFG Taiwan Semiconductor Corporation, Mosfet Array N and P-Channel 20V 11.6A (Tc), 9A (Tc) 6.25W Surface Mount 6-TDFN (2x2), View
TC8220K6-G Microchip Technology, Mosfet Array 2 N and 2 P-Channel 200V Surface Mount 12-DFN (4x4), View
NTJD1155LT1G ON Semiconductor, Mosfet Array N and P-Channel 8V 1.3A 400mW Surface Mount SC-88/SC70-6/SOT-363, View
DMC3730UFL3-7 Diodes Incorporated, Mosfet Array N and P-Channel Complementary 30V 1.1A, 700mA 390mW Surface Mount X2-DFN1310-6 (Type B), Automotive, AEC-Q101 View
TC6215TG-G Microchip Technology, Mosfet Array N and P-Channel 150V Surface Mount 8-SOIC, View
PMCXB900UELZ Nexperia USA Inc., Mosfet Array N and P-Channel Complementary 20V 600mA 380mW Surface Mount DFN1010B-6, View
SQJ500AEP-T1_GE3 Vishay Siliconix, Mosfet Array N and P-Channel 40V 30A (Tc) 48W Surface Mount PowerPAK® SO-8 Dual, Automotive, AEC-Q101, TrenchFET® View
