TK31V60X,LQ

TK31V60X,LQ

Part NumberTK31V60X,LQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 600V 30.8A 5DFN

DatasheetTK31V60X

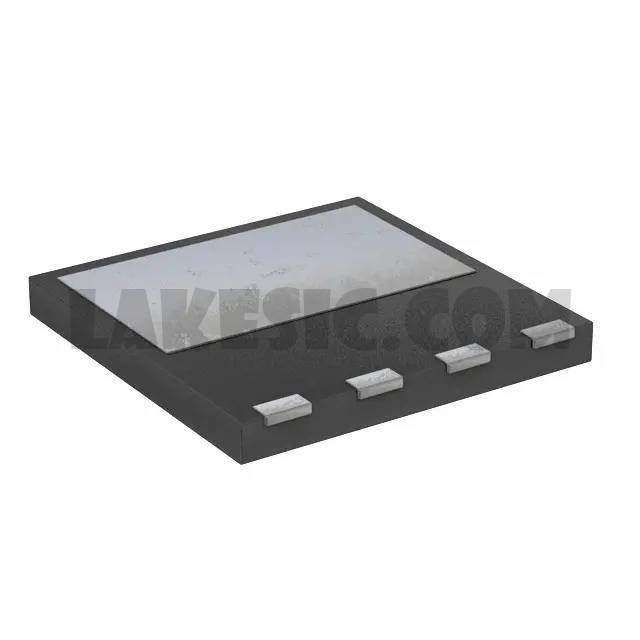

Package / Case4-VSFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 30.8A (Ta) 240W (Tc) Surface Mount 4-DFN-EP (8x8)

To learn about the specification of TK31V60X,LQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK31V60X,LQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK31V60X,LQ.
We are offering TK31V60X,LQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK31V60X,LQ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK31V60X
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	DTMOSIV-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	30.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	98mOhm @ 9.4A, 10V
Vgs(th) (Max) @ Id	3.5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	65nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3000pF @ 300V
FET Feature	Super Junction
Power Dissipation (Max)	240W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DFN-EP (8x8)
Package / Case	4-VSFN Exposed Pad
