TK380P65Y,RQ

TK380P65Y,RQ

Part NumberTK380P65Y,RQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CHANNEL 650V 9.7A DPAK

DatasheetTK380P65Y

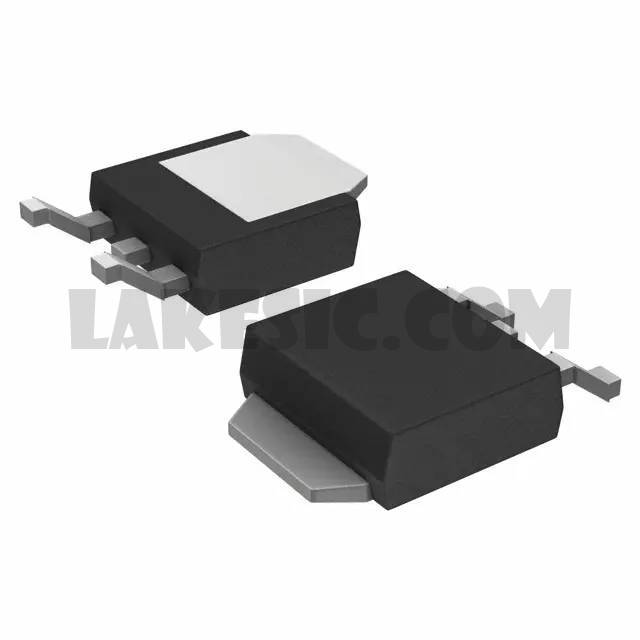

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 9.7A (Tc) 80W (Tc) Surface Mount DPAK

To learn about the specification of TK380P65Y,RQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK380P65Y,RQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK380P65Y,RQ.
We are offering TK380P65Y,RQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK380P65Y,RQ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK380P65Y
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	DTMOSV
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	9.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	380mOhm @ 4.9A, 10V
Vgs(th) (Max) @ Id	4V @ 360µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	590pF @ 300V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
