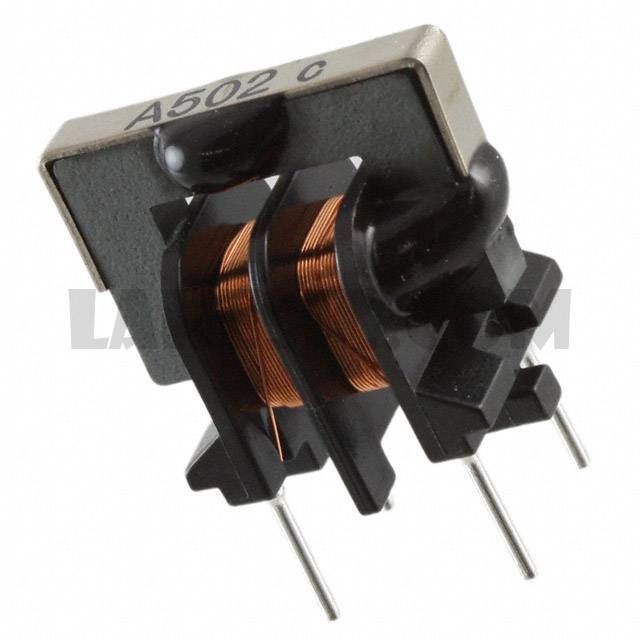

TLF9UA502WR32K1

TLF9UA502WR32K1

Part NumberTLF9UA502WR32K1

ManufacturerTaiyo Yuden

DescriptionCMC 5MH 320MA 2LN TH

DatasheetTLF9UA502WR32K1 View all Specification

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5mH @ 1kHz 2 Line Common Mode Choke Through Hole 320mA DCR 2.5Ohm

To learn about the specification of TLF9UA502WR32K1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TLF9UA502WR32K1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TLF9UA502WR32K1.
We are offering TLF9UA502WR32K1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TLF9UA502WR32K1 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	TLF9UA502WR32K1 View all Specification
Standard Package	500
Manufacturer	Taiyo Yuden
Series	TLF9
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	5mH @ 1kHz
Current Rating (Max)	320mA
DC Resistance (DCR) (Max)	2.5Ohm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max)	0.630" (16.00mm)
Package / Case	Vertical, 4 PC Pin

TLF9UA502WR32K1 - Related Products

	TLF9UA102W0R8K1	Taiyo Yuden, 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 800mA DCR 500mOhm, TLF9	View
	TLF9UA103WR23K1	Taiyo Yuden, 10mH @ 1kHz 2 Line Common Mode Choke Through Hole 230mA DCR 4.5Ohm, TLF9	View
	TLF9UA502WR32K1	Taiyo Yuden, 5mH @ 1kHz 2 Line Common Mode Choke Through Hole 320mA DCR 2.5Ohm, TLF9	View
	TLF9UA802WR25K1	Taiyo Yuden, 2 Line Common Mode Choke Through Hole 250mA DCR 4Ohm, TLF9	View
