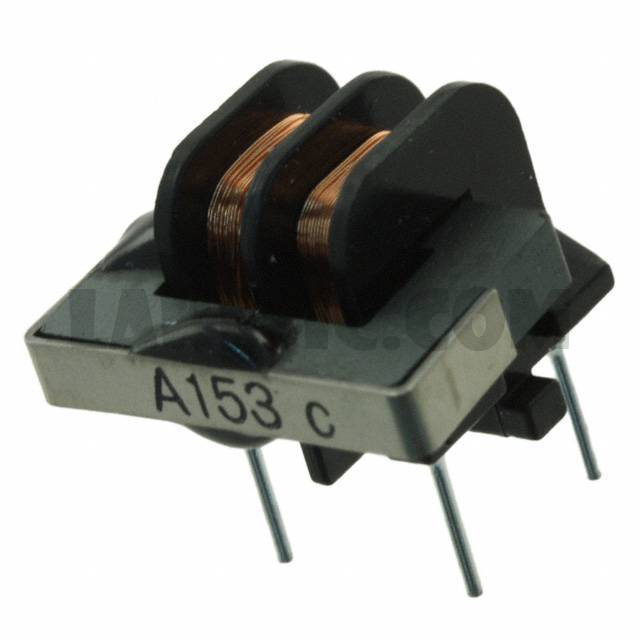

TLF9UAH153W0R2K1

TLF9UAH153W0R2K1

Part NumberTLF9UAH153W0R2K1

ManufacturerTaiyo Yuden

DescriptionCOMMON MODE CHOKE 200MA 2LN TH

DatasheetCommon Mode Choke Coils

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 200mA DCR 5.5Ohm

To learn about the specification of TLF9UAH153W0R2K1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TLF9UAH153W0R2K1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TLF9UAH153W0R2K1.
We are offering TLF9UAH153W0R2K1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TLF9UAH153W0R2K1 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	Common Mode Choke Coils
Standard Package	500
Manufacturer	Taiyo Yuden
Series	TLF9
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Current Rating (Max)	200mA
DC Resistance (DCR) (Max)	5.5Ohm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.669" L x 0.591" W (17.00mm x 15.00mm)
Height (Max)	0.472" (12.00mm)
Package / Case	Vertical, 4 PC Pin
