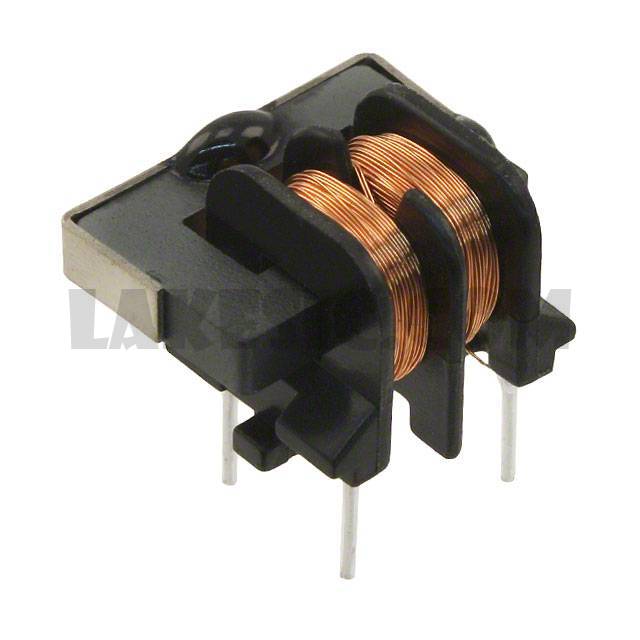

TLF9UBH203WK1

TLF9UBH203WK1

Part NumberTLF9UBH203WK1

ManufacturerTaiyo Yuden

DescriptionCMC 180MA 2LN 150 KOHM TH

DatasheetTLF9UBH203WK1 View all Specification

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 150 kOhms @ 500kHz 180mA DCR 6.5Ohm

To learn about the specification of TLF9UBH203WK1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TLF9UBH203WK1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TLF9UBH203WK1.
We are offering TLF9UBH203WK1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TLF9UBH203WK1 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	TLF9UBH203WK1 View all Specification
Standard Package	500
Manufacturer	Taiyo Yuden
Series	TLF9
Packaging	Bulk
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	150 kOhms @ 500kHz
Current Rating (Max)	180mA
DC Resistance (DCR) (Max)	6.5Ohm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.669" L x 0.591" W (17.00mm x 15.00mm)
Height (Max)	0.472" (12.00mm)
Package / Case	Vertical, 4 PC Pin

TLF9UBH203WK1 - Related Products

	TLF9UBH802WK1	Taiyo Yuden, 2 Line Common Mode Choke Through Hole 40 kOhms @ 700kHz 300mA DCR 3Ohm, TLF9	View
	TLF9UBH203WK1	Taiyo Yuden, 2 Line Common Mode Choke Through Hole 150 kOhms @ 500kHz 180mA DCR 6.5Ohm, TLF9	View
