TN5325K1-G

TN5325K1-G

Part NumberTN5325K1-G

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 250V SOT23-3

DatasheetTN5325 Datasheet

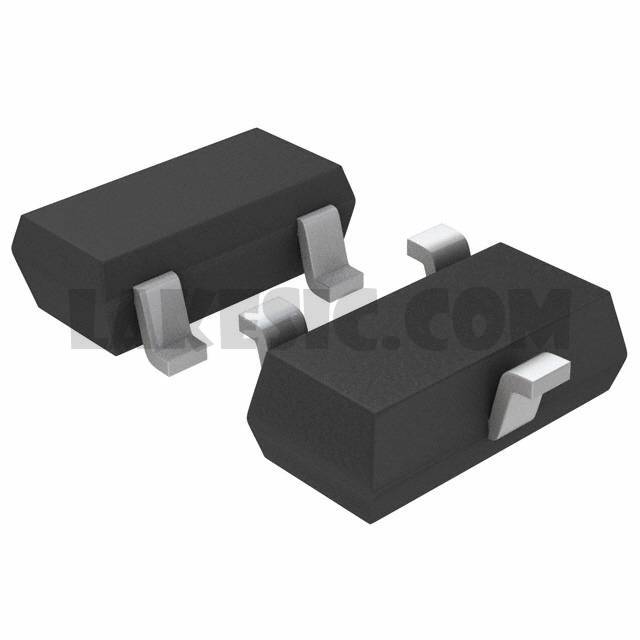

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 150mA (Ta) 360mW (Ta) Surface Mount TO-236AB (SOT23)

To learn about the specification of TN5325K1-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TN5325K1-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TN5325K1-G.
We are offering TN5325K1-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TN5325K1-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TN5325 Datasheet
Standard Package	3000
Manufacturer	Microchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25°C	150mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	110pF @ 25V
FET Feature	-
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	TO-236AB (SOT23)
Package / Case	TO-236-3, SC-59, SOT-23-3
