TPH3206LSB
TPH3206LSB

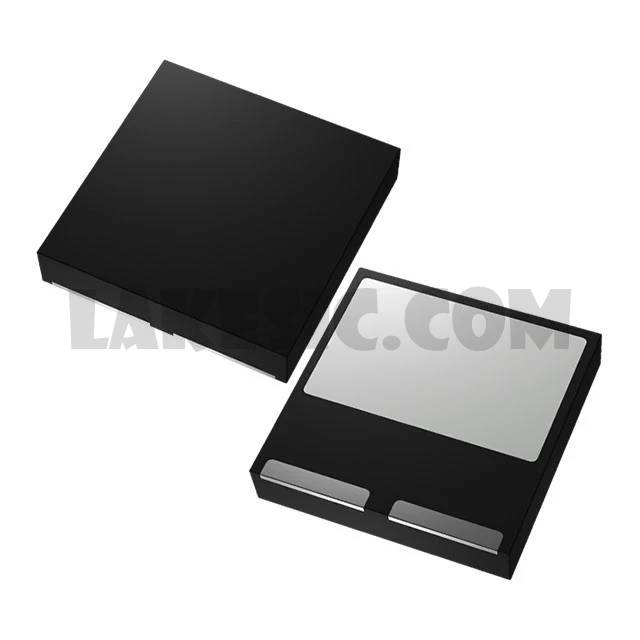

Part Number TPH3206LSB Description GANFET N-CH 650V 16A PQFN Package / Case 3-PowerDFNUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 650V 16A (Tc) 81W (Tc) Surface Mount PQFN (8x8)
To learn about the specification of TPH3206LSB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH3206LSB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH3206LSB.
We are offering TPH3206LSB for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TPH3206LSB - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet TPH3206L Series Standard Package 60 Manufacturer Transphorm Series - Packaging Tube Part Status Not For New Designs FET Type N-Channel Technology GaNFET (Gallium Nitride) Drain to Source Voltage (Vdss) 650V Current - Continuous Drain (Id) @ 25°C 16A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 180mOhm @ 10A, 8V Vgs(th) (Max) @ Id 2.6V @ 500µA Gate Charge (Qg) (Max) @ Vgs 6.2nC @ 4.5V Vgs (Max) ±18V Input Capacitance (Ciss) (Max) @ Vds 720pF @ 480V FET Feature - Power Dissipation (Max) 81W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package PQFN (8x8) Package / Case 3-PowerDFN
