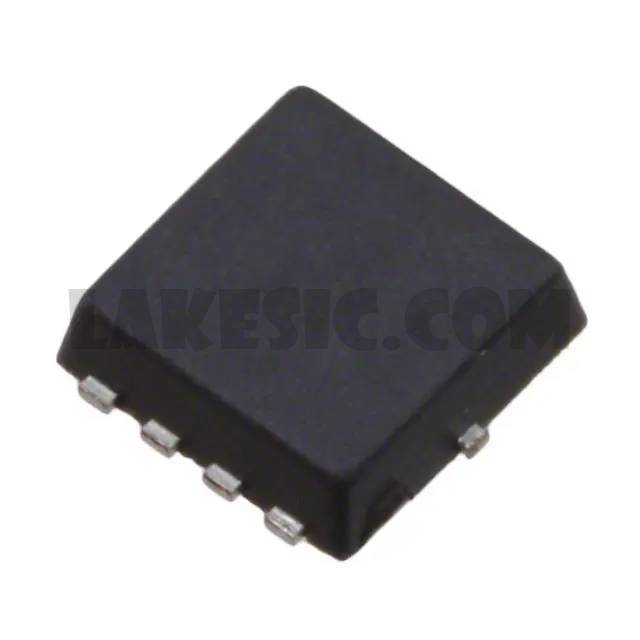

TPN30008NH,LQ

TPN30008NH,LQ

Part NumberTPN30008NH,LQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 80V 9.6A 8TSON

DatasheetTPN30008NH

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 9.6A (Tc) 700mW (Ta), 27W (Tc) Surface Mount 8-TSON Advance (3.3x3.3)

To learn about the specification of TPN30008NH,LQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPN30008NH,LQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPN30008NH,LQ.
We are offering TPN30008NH,LQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPN30008NH,LQ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TPN30008NH
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	9.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	30mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id	4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	920pF @ 40V
FET Feature	-
Power Dissipation (Max)	700mW (Ta), 27W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.3x3.3)
Package / Case	8-PowerVDFN
