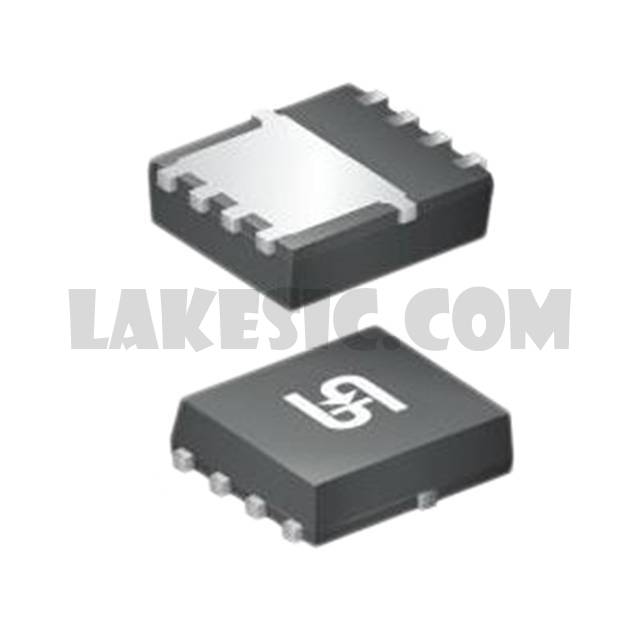

TSM200N03DPQ33 RGG

Part NumberTSM200N03DPQ33 RGG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET 2 N-CH 30V 20A 8PDFN

DatasheetTSM200N03D

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 20A (Tc) 20W Surface Mount 8-PDFN (3x3)

To learn about the specification of TSM200N03DPQ33 RGG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM200N03DPQ33 RGG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM200N03DPQ33 RGG.
We are offering TSM200N03DPQ33 RGG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM200N03DPQ33 RGG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	TSM200N03D
Standard Package	5000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	345pF @ 25V
Power - Max	20W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PDFN (3x3)
