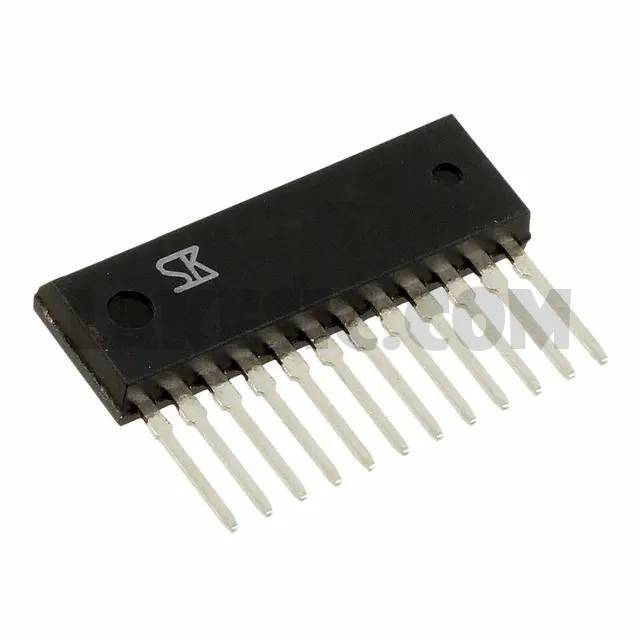

SMA5125

Part NumberSMA5125

ManufacturerSanken

DescriptionMOSFET 3N/3P-CH 60V 10A 12-SIP

DatasheetSMA5125

Package / Case12-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 3 N and 3 P-Channel (3-Phase Bridge) 60V 10A 4W Through Hole 12-SIP

To learn about the specification of SMA5125, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SMA5125 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SMA5125.
We are offering SMA5125 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SMA5125 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SMA5125
Standard Package	18
Manufacturer	Sanken
Series	-
Packaging	Tube
Part Status	Not For New Designs
FET Type	3 N and 3 P-Channel (3-Phase Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	10A
Rds On (Max) @ Id, Vgs	140mOhm @ 5A, 4V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	460pF @ 10V
Power - Max	4W
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	12-SIP
Supplier Device Package	12-SIP
