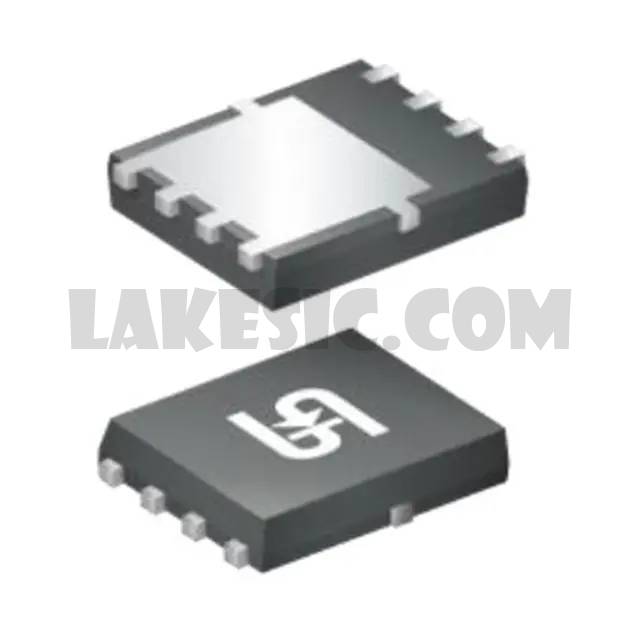

TSM6502CR RLG

Part NumberTSM6502CR RLG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N/P-CH 60V 24A/18A 8PDFN

DatasheetTSM6502CR

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 60V 24A (Tc), 18A (Tc) 40W Surface Mount 8-PDFN (5x6)

To learn about the specification of TSM6502CR RLG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM6502CR RLG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM6502CR RLG.
We are offering TSM6502CR RLG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM6502CR RLG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	TSM6502CR
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	24A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs	34mOhm @ 5.4A, 10V, 68mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.3nC @ 4.5V, 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1159pF @ 30V, 930pF @ 30V
Power - Max	40W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-PDFN (5x6)
