MCMNP517-TP

Part NumberMCMNP517-TP

ManufacturerMicro Commercial Co

DescriptionMOSFET N/P-CH 12V 6A/4.1A

DatasheetMCMNP517

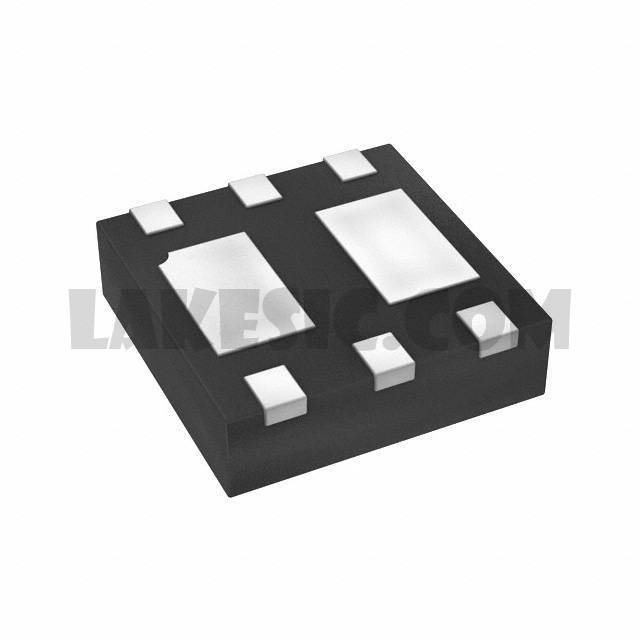

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 12V 6A, 4.1A Surface Mount DFN2020-6U

To learn about the specification of MCMNP517-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCMNP517-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCMNP517-TP.
We are offering MCMNP517-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCMNP517-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	MCMNP517
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Last Time Buy
FET Type	N and P-Channel
FET Feature	Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	6A, 4.1A
Rds On (Max) @ Id, Vgs	24mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	630pF @ 10V
Power - Max	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	DFN2020-6U
