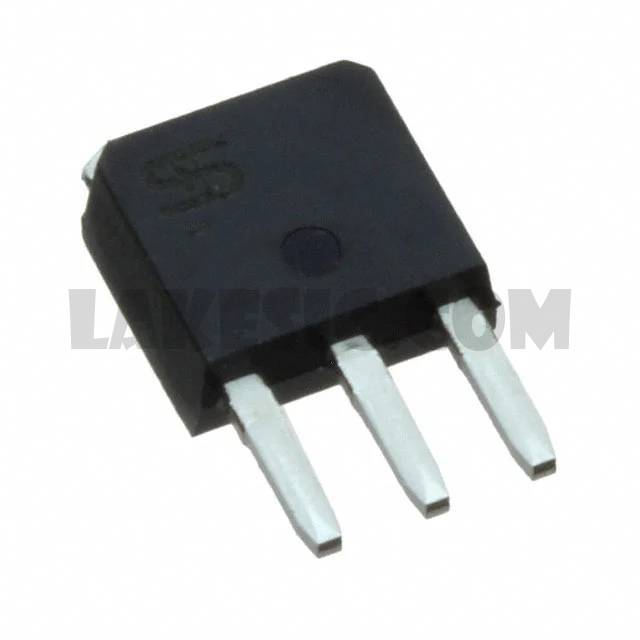

TSM680P06CH X0G

TSM680P06CH X0G

Part NumberTSM680P06CH X0G

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET P-CHANNEL 60V 18A TO251

DatasheetTSM680P06

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 60V 18A (Tc) 20W (Tc) Through Hole TO-251 (IPAK)

To learn about the specification of TSM680P06CH X0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM680P06CH X0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM680P06CH X0G.
We are offering TSM680P06CH X0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM680P06CH X0G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM680P06
Standard Package	1875
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	68mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16.4nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	870pF @ 30V
FET Feature	-
Power Dissipation (Max)	20W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Stub Leads, IPak
