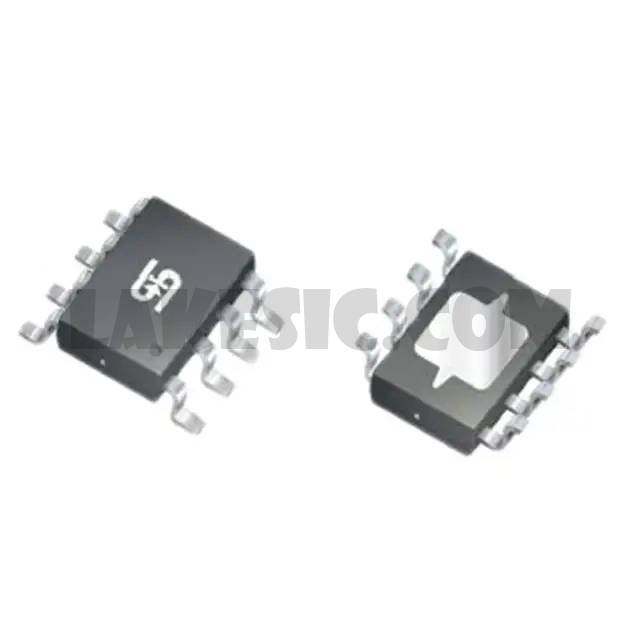

TSM9926DCS RLG

Part NumberTSM9926DCS RLG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET 2 N-CHANNEL 20V 6A 8SOP

DatasheetTSM9926D

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 20V 6A (Tc) 1.6W Surface Mount 8-SOP

To learn about the specification of TSM9926DCS RLG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM9926DCS RLG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM9926DCS RLG.
We are offering TSM9926DCS RLG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM9926DCS RLG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	TSM9926D
Standard Package	2500
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Rds On (Max) @ Id, Vgs	30mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	600mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	562pF @ 8V
Power - Max	1.6W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
