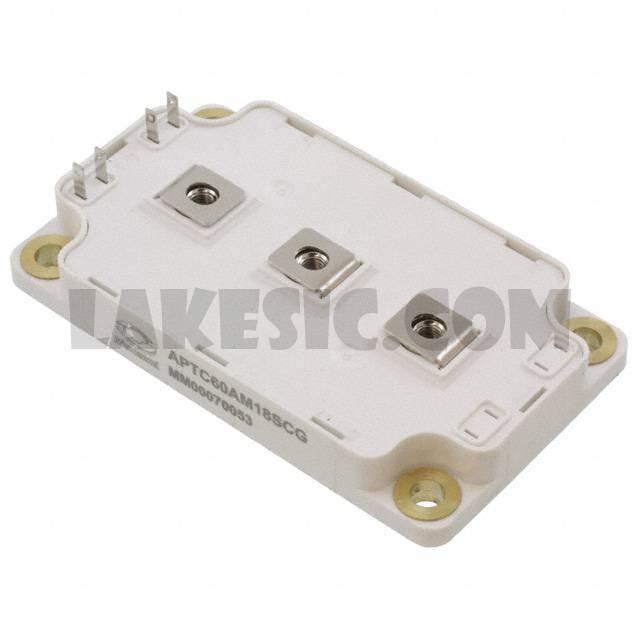

APTC60AM18SCG

Part NumberAPTC60AM18SCG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 600V 143A SP6

DatasheetAPTC60AM18SCG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 600V 143A 833W Chassis Mount SP6

To learn about the specification of APTC60AM18SCG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTC60AM18SCG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTC60AM18SCG.
We are offering APTC60AM18SCG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTC60AM18SCG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTC60AM18SCG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	CoolMOS™
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	143A
Rds On (Max) @ Id, Vgs	18mOhm @ 71.5A, 10V
Vgs(th) (Max) @ Id	3.9V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	1036nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	28000pF @ 25V
Power - Max	833W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
