TT8M3TR


TT8M3TR

Part NumberTT8M3TR

Manufacturer

Description

Datasheet

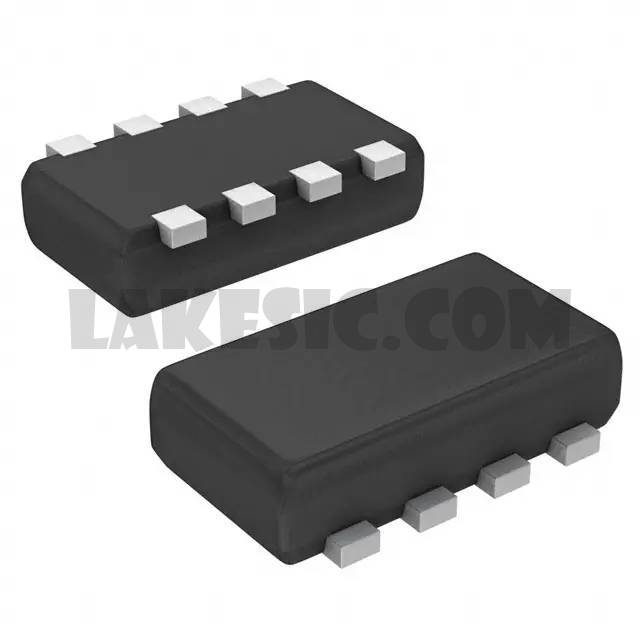

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TT8M3TR - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package3000
ManufacturerRohm Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate, 1.5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.5A, 2.4A
Rds On (Max) @ Id, Vgs72mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs3.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds260pF @ 10V
Power - Max1W
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device Package8-TSST
