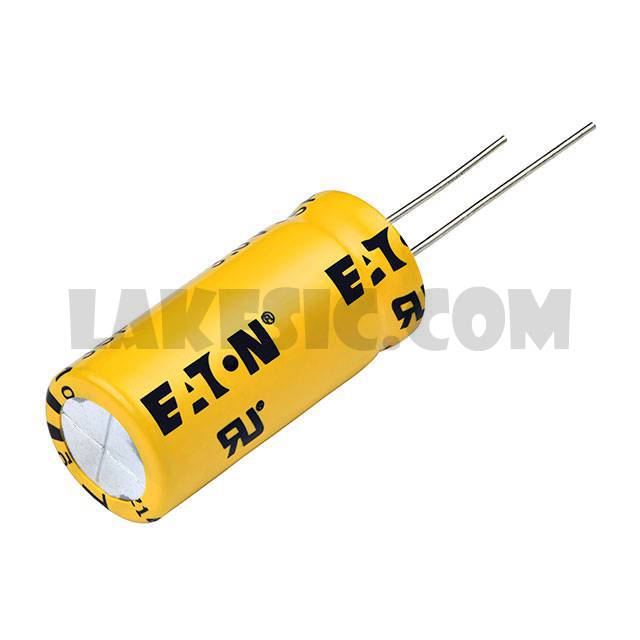

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	TV Supercapacitor Series
Standard Package	90
Manufacturer	Eaton - Electronics Division
Series	TV
Packaging	Bulk
Part Status	Active
Capacitance	100F
Tolerance	-10%, +30%
Voltage - Rated	3V
ESR (Equivalent Series Resistance)	11mOhm
Lifetime @ Temp.	1000 Hrs @ 85°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.728" Dia (18.50mm)
Height - Seated (Max)	2.382" (60.50mm)
Operating Temperature	-40°C ~ 85°C

TV1245-3R0346-R	Eaton - Electronics Division, 34F (EDLC) Supercapacitor 3V Radial, Can 16mOhm 1000 Hrs @ 85°C, TV	View
TV1020-3R0605-R	Eaton - Electronics Division, 6F (EDLC) Supercapacitor 3V Radial, Can 35mOhm 1000 Hrs @ 85°C, TV	View
TV1030-3R0106-R	Eaton - Electronics Division, 10F (EDLC) Supercapacitor 3V Radial, Can 26mOhm 1000 Hrs @ 85°C, TV	View
TV1325-3R0156-R	Eaton - Electronics Division, 15F (EDLC) Supercapacitor 3V Radial, Can 24mOhm 1000 Hrs @ 85°C, TV	View
TV1625-3R0256-R	Eaton - Electronics Division, 25F (EDLC) Supercapacitor 3V Radial, Can 18mOhm 1000 Hrs @ 85°C, TV	View
TV1840-3R0606-R	Eaton - Electronics Division, 60F (EDLC) Supercapacitor 3V Radial, Can 13mOhm 1000 Hrs @ 85°C, TV	View
TV1635-3R0356-R	Eaton - Electronics Division, 35F (EDLC) Supercapacitor 3V Radial, Can 15mOhm 1000 Hrs @ 85°C, TV	View
TV1860-3R0107-R	Eaton - Electronics Division, 100F (EDLC) Supercapacitor 3V Radial, Can 11mOhm 1000 Hrs @ 85°C, TV	View

TV1860-3R0107-R

Part NumberTV1860-3R0107-R
