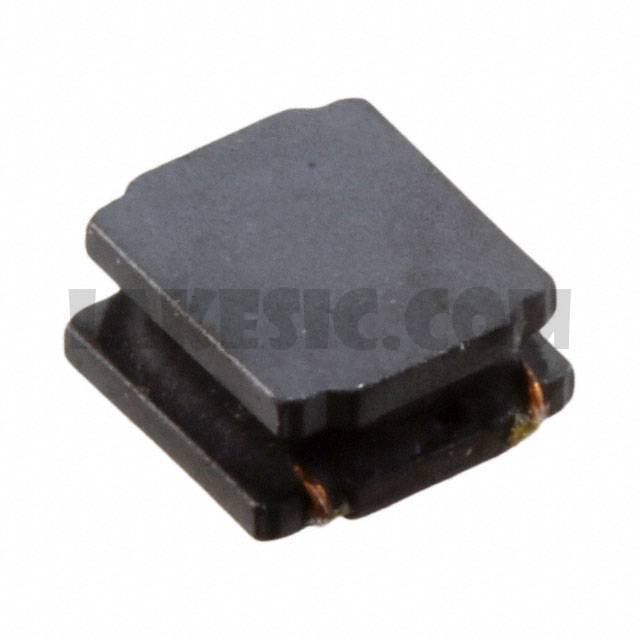

TYS30156R8M-10
TYS30156R8M-10
Part Number TYS30156R8M-10 Description FIXED IND 6.8UH 850MA 200 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6.8µH Shielded Inductor 850mA 200mOhm Max Nonstandard
To learn about the specification of TYS30156R8M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS30156R8M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS30156R8M-10.
We are offering TYS30156R8M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TYS30156R8M-10 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet TYS Low Profile SMD Power Inductors Catalog Standard Package 1 Manufacturer Laird-Signal Integrity Products Series TYS3015 Packaging Cut Tape (CT) Part Status Active Type - Material - Core - Inductance 6.8µH Tolerance ±20% Current Rating (Amps) 850mA Current - Saturation 850mA Shielding Shielded DC Resistance (DCR) 200mOhm Max Q @ Freq - Frequency - Self Resonant 39MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm) Height - Seated (Max) 0.067" (1.70mm)
