TYS40301R0N-10
TYS40301R0N-10

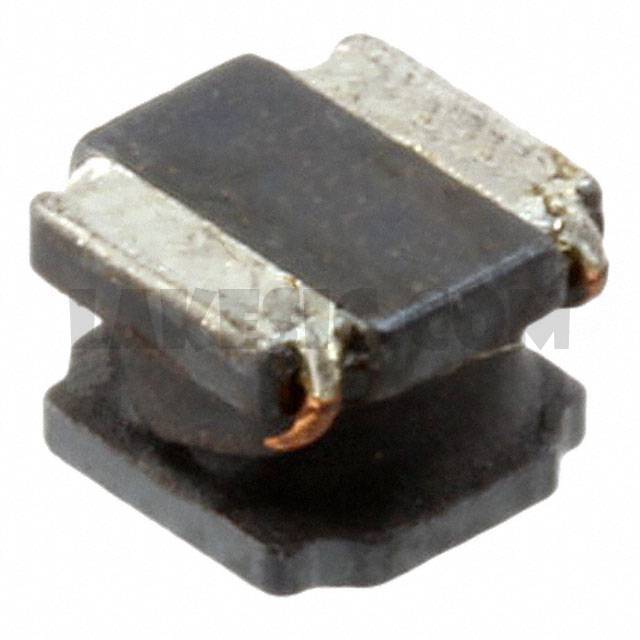

Part Number TYS40301R0N-10 Description FIXED IND 1UH 4.15A 18.2 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1µH Shielded Wirewound Inductor 4.15A 18.2mOhm Max Nonstandard
To learn about the specification of TYS40301R0N-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS40301R0N-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS40301R0N-10.
We are offering TYS40301R0N-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TYS40301R0N-10 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet TYS40301R0N-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series TYS4030 Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core - Inductance 1µH Tolerance ±30% Current Rating (Amps) 4.15A Current - Saturation 5.26A Shielding Shielded DC Resistance (DCR) 18.2mOhm Max Q @ Freq - Frequency - Self Resonant 70MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm) Height - Seated (Max) 0.118" (3.00mm)
