TYS5020220M-10
TYS5020220M-10

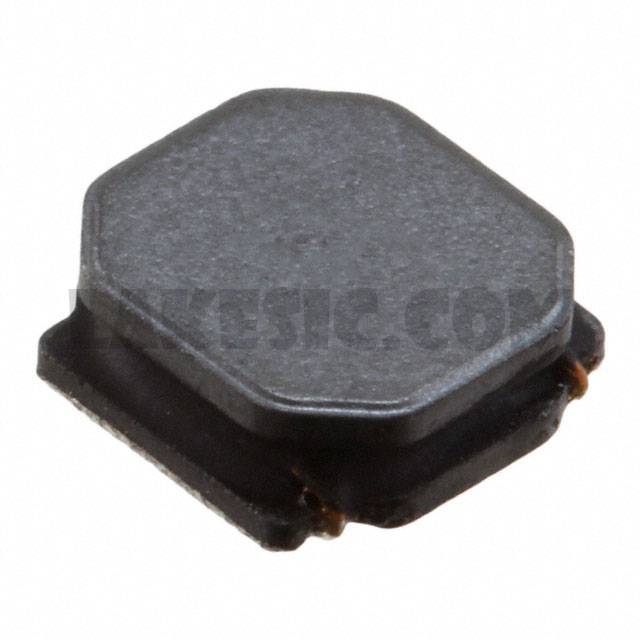

Part Number TYS5020220M-10 Description FIXED IND 22UH 1.1A 226 MOHM SMD Package / Case 2020 (5050 Metric)Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Shielded Inductor 1.1A 226mOhm Max 2020 (5050 Metric)
To learn about the specification of TYS5020220M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS5020220M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS5020220M-10.
We are offering TYS5020220M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TYS5020220M-10 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet TYS5020220M-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series TYS5020 Packaging Cut Tape (CT) Part Status Active Type - Material - Core - Inductance 22µH Tolerance ±20% Current Rating (Amps) 1.1A Current - Saturation 1.15A Shielding Shielded DC Resistance (DCR) 226mOhm Max Q @ Freq - Frequency - Self Resonant 14MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case 2020 (5050 Metric) Supplier Device Package - Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm) Height - Seated (Max) 0.079" (2.00mm)
