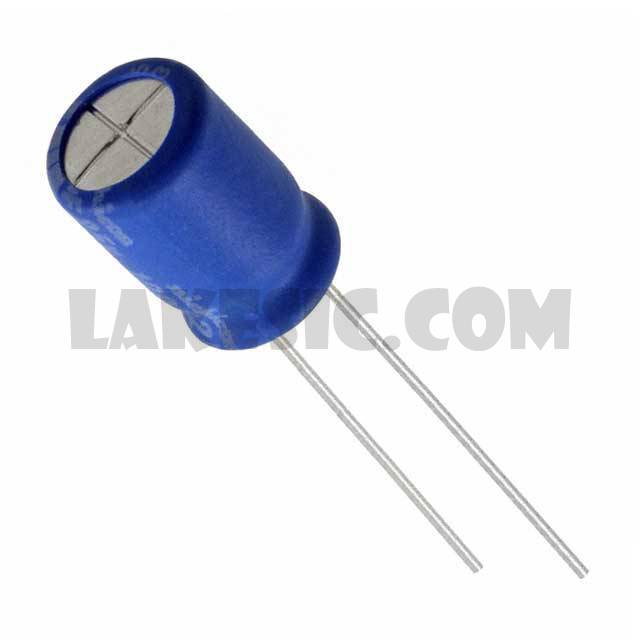

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBW Series
Standard Package	1
Manufacturer	Nichicon
Series	UBW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 135°C
Operating Temperature	-55°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	170mA @ 120Hz
Ripple Current @ High Frequency	340mA @ 100kHz
Impedance	260 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBW1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1C101MPD1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1H010MPD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1J221MHD1TO	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1J470MPD1TD	Nichicon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1J220MPD1TD	Nichicon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1E101MPD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1H4R7MPD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1A102MPD1TD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1A221MPD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1C102MHD1TO	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View

UBW1A221MPD1TD

Part NumberUBW1A221MPD1TD
