Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBX Series
Standard Package	50
Manufacturer	Nichicon
Series	UBX
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 150°C
Operating Temperature	-55°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	760mA @ 120Hz
Ripple Current @ High Frequency	1.52A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBX2G100MHL	Nichicon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J221MHL1TO	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J221MHL	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2G6R8MHL1TO	Nichicon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2V100MHL1TO	Nichicon, 10µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1V2R2MPL1TD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2A470MPL1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J101MPL	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2A101MHL1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2V6R8MPL1TD	Nichicon, 6.8µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2A331MHL	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2D330MHL1TO	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View

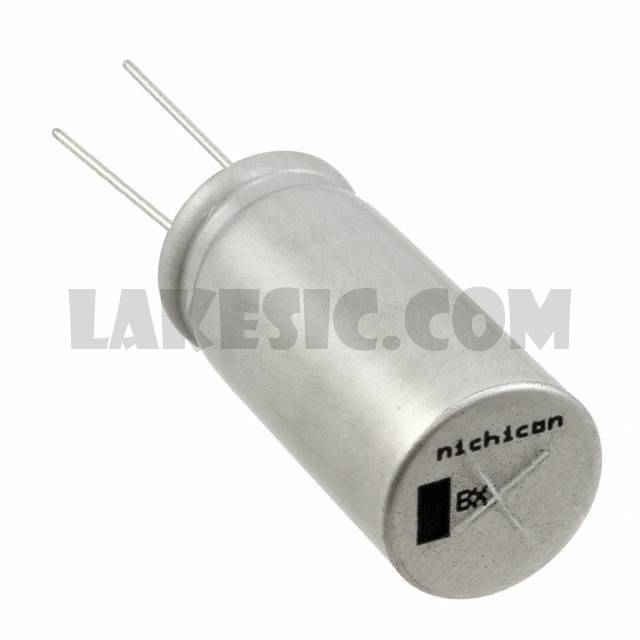

UBX1J681MHL

Part NumberUBX1J681MHL
