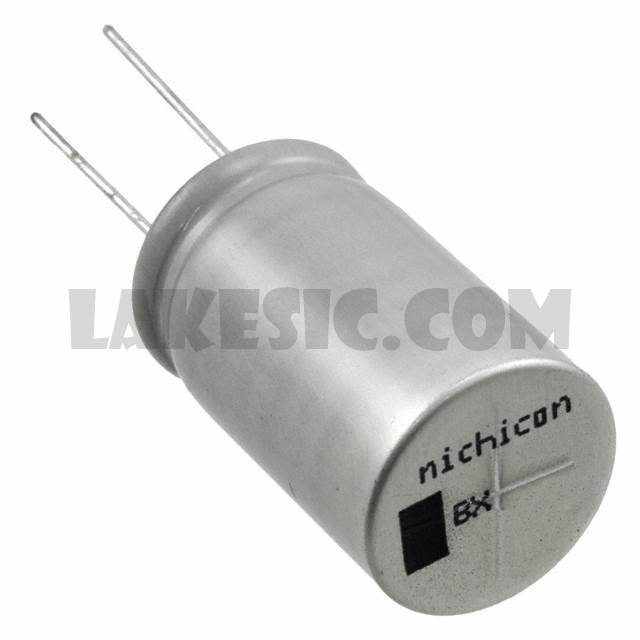

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBX Series
Standard Package	50
Manufacturer	Nichicon
Series	UBX
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 150°C
Operating Temperature	-55°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	715mA @ 120Hz
Ripple Current @ High Frequency	1.43A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBX1J680MPL1TD	Nichicon, 68µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1H471MHL	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1V100MPL1TD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1C102MHL1TN	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2A220MPL1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2A470MPL	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2D470MHL1TO	Nichicon, 47µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1C332MHL	Nichicon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2A101MHL1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1V470MPL1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J471MHL	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2G4R7MPL1TD	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View

UBX2A331MHL

Part NumberUBX2A331MHL
