Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCA Series
Standard Package	250
Manufacturer	Nichicon
Series	UCA
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	680mA @ 120Hz
Ripple Current @ High Frequency	1.36A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCA2W220MHD6TN	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2V330MHD1TN	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2D101MHD1TN	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E330MHD1TO	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2W330MHD6TN	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2C470MHD	Nichicon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2C220MPD1TD	Nichicon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2V680MHD6TN	Nichicon, 68µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E220MHD	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E470MHD1TO	Nichicon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2G220MHD6TN	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2G470MHD6TN	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View

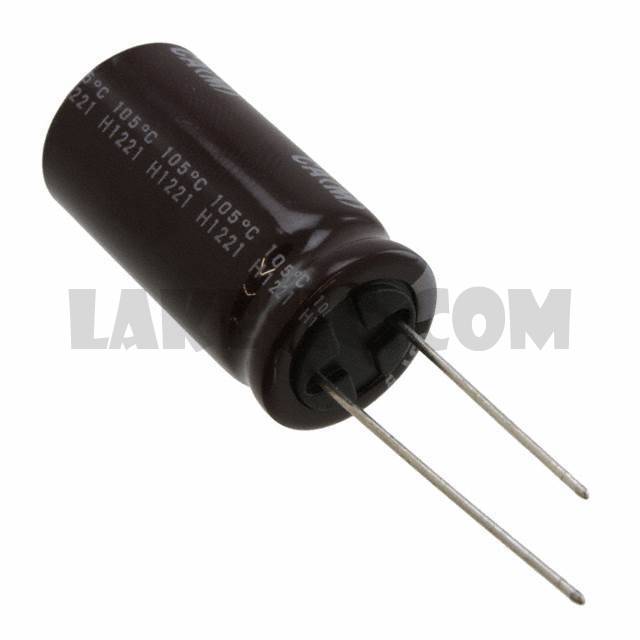

UCA2C151MHD6TN

Part NumberUCA2C151MHD6TN
