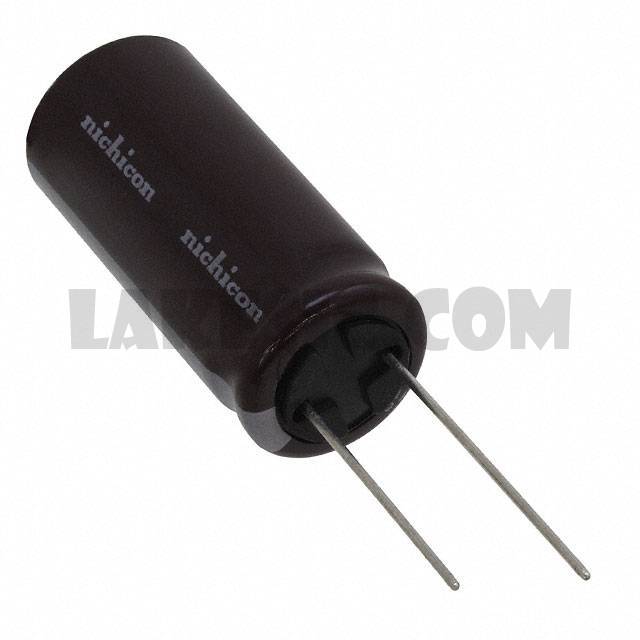

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCP Series
Standard Package	50
Manufacturer	Nichicon
Series	UCP
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	800mA @ 120Hz
Ripple Current @ High Frequency	1.2A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCP2W181MHD	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G101MHD	Nichicon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W560MHD	Nichicon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W101MHD	Nichicon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6151MHD	Nichicon, 150µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G560MHD	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6121MHD6	Nichicon, 120µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6330MPD	Nichicon, 33µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G151MHD6	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G181MHD	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W121MHD6	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W820MHD	Nichicon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View

UCP2G121MHD

Part NumberUCP2G121MHD
