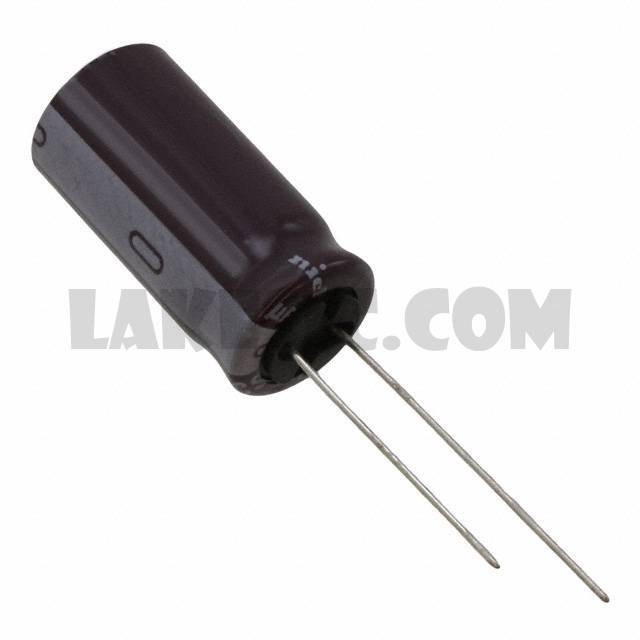

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCS Series Datasheet
Standard Package	100
Manufacturer	Nichicon
Series	UCS
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	710mA @ 120Hz
Ripple Current @ High Frequency	1.42A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCS2G820MHD	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G680MNY9	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E330MHD	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G820MHD1TN	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G470MHD6	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2V330MHD1TN	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D221MHD1TN	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G330MHD1TN	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W680MHD	Nichicon, 68µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E220MPD1TD	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2G220MHD1TO	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G560MND9	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View

UCS2C101MHD

Part NumberUCS2C101MHD
