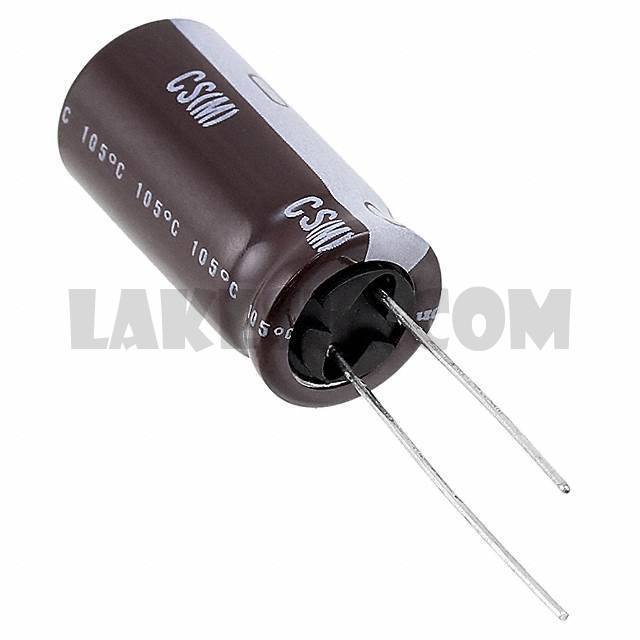

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCS Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UCS
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	15µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	300mA @ 120Hz
Ripple Current @ High Frequency	600mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCS2W150MHD1TO	Nichicon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E680MHD1TN	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D101MND9	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G150MHD1TO	Nichicon, 15µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2C820MHD1TO	Nichicon, 82µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W220MHD	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E820MHD1TN	Nichicon, 82µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D121MND9	Nichicon, 120µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W330MHD6TN	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2C820MHD1TO	Nichicon, 82µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G680MNY9	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2C101MHD6TN	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View

UCS2W150MHD1TO

Part NumberUCS2W150MHD1TO
