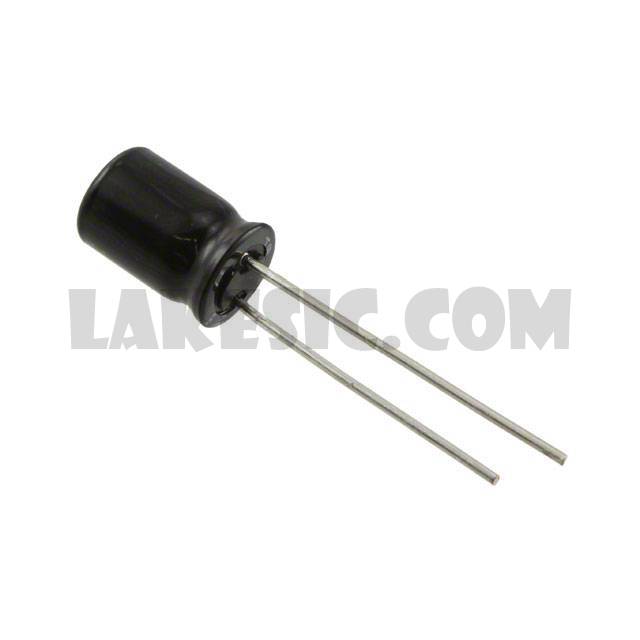

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UDB Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UDB
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	Audio
Ripple Current @ High Frequency	205mA @ 20kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UDB1H2R2MPM	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H6R8MHM1TO	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H010MPM1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H2R2MPM1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H010MPM	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H150MHM1TO	Nichicon, 15µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H6R8MHM1TO	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H680MRM	Nichicon, 68µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H150MHM1TO	Nichicon, 15µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H1R5MPM1TD	Nichicon, 1.5µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H3R3MPM1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H100MHM1TO	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View

UDB1H010MPM1TD

Part NumberUDB1H010MPM1TD
