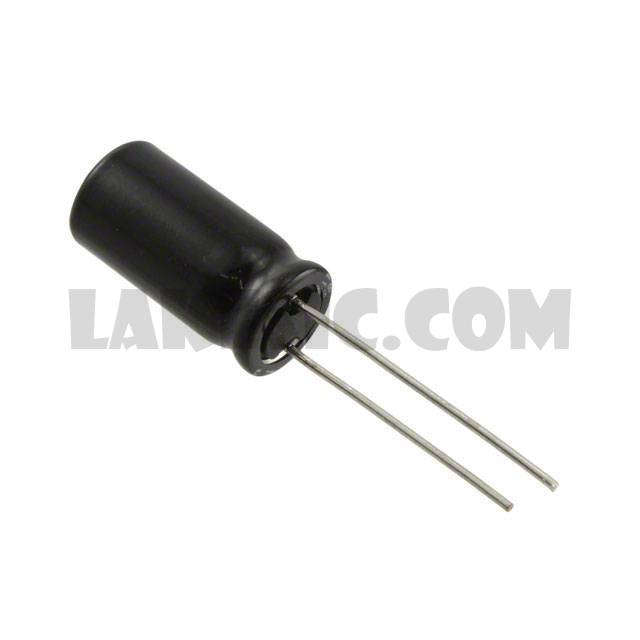

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UDB Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UDB
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	Audio
Ripple Current @ High Frequency	480mA @ 4.2kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.827" (21.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UDB1H010MPM1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H2R2MPM1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H1R5MPM1TD	Nichicon, 1.5µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H4R7MPM1TD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H6R8MHM	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H2R2MPM	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H1R5MPM	Nichicon, 1.5µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H470MHM	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H220MHM1TN	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H330MHM	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H010MPM	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H220MHM1TN	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View

UDB1H4R7MPM1TD

Part NumberUDB1H4R7MPM1TD
